Pike Bridge Project




























The Work Underway Picture Gallery - Site Investigations
December 2004


Click on images for a larger version.....



CCT volunteers reveal the top of the steps
leading to the path under the bridge
22nd November 2004






The professionals arrive - surveying the site
30th November 2004




Drilling to find out what is under the road -
something very solid it turns out!
3rd December 2004






The drilling rig from the towpath
3rd December 2004




Excavation and drilling
7th December 2004





A coping stone on the towpath under
Pike Bridge with brick abutment behind

7th December 2004

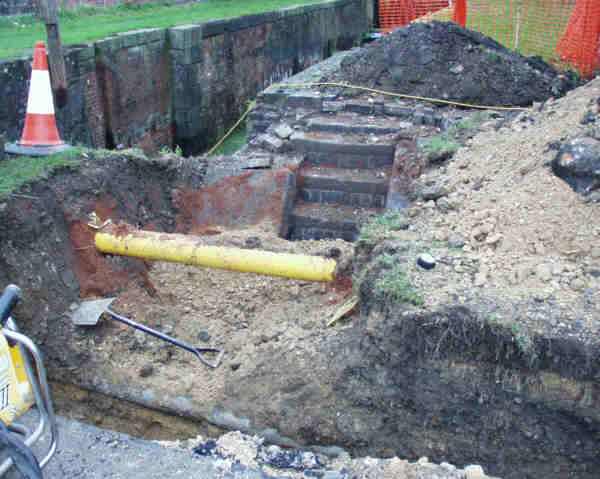

A medium pressure gas main with two other
pipes below in the verge on the east side -
those that are still in use will have to be
relocated on to the new bridge.

7th December 2004


Pike Bridge south east corner
10th December 2004


Interface between the 1924 extension
and the older brick bridge

9th December 2004



Pike Bridge site view
10th December 2004






What we were aiming at.......
